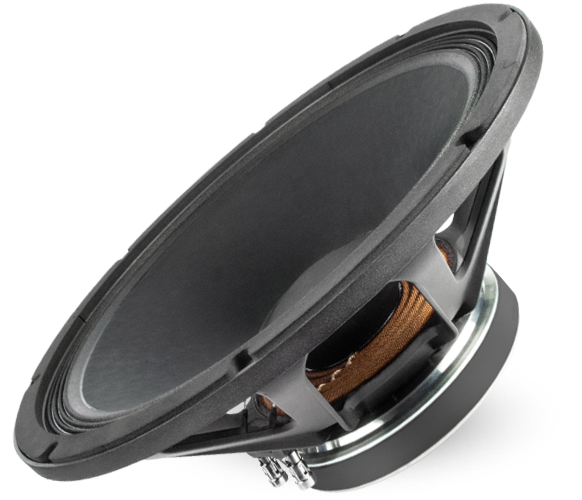

15PR450

15" FERRITE MID WOOFER

800 W Max Power • 77 mm (3") Voice Coil Diameter

35 ÷ 4000 Hz Frequency Range • 98 dB Sensitivity

12RS430

12" FERRITE WOOFER

800 W Max Power • 65 mm (2.56") Voice Coil Diameter

30 ÷ 2500 Hz Frequency Range • 94 dB Sensitivity

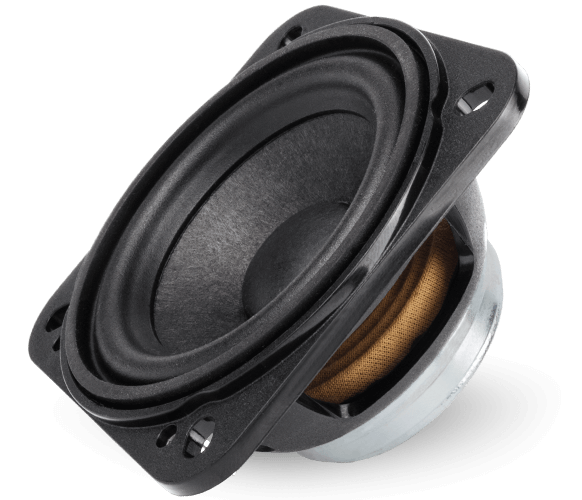

4FE42

4" NEODYMIUM FULL RANGE

80 W Max Power • 25 mm (0.98") Voice Coil Diameter

100 ÷ 20000 Hz Frequency Range • 94 dB Sensitivity

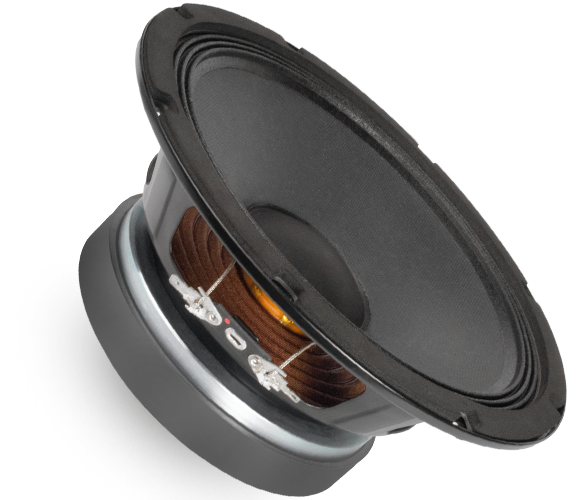

8RS350

8" FERRITE WOOFER

600 W Max Power • 65 mm (2.56") Voice Coil Diameter

50 ÷ 6300 Hz Frequency Range • 90 dB Sensitivity

FD375

FERRITE FLARED HF DRIVER

70 W Max Power • 37 mm (1.46") Voice coil diameter

2.6 kHz Minimum Crossover Frequency • 107 dB Sensitivity

10FE330

10" FERRITE WOOFER

500 W Max Power • 52 mm (2.05") Voice Coil Diameter

35 ÷ 4000 Hz Frequency Range • 92 dB Sensitivity

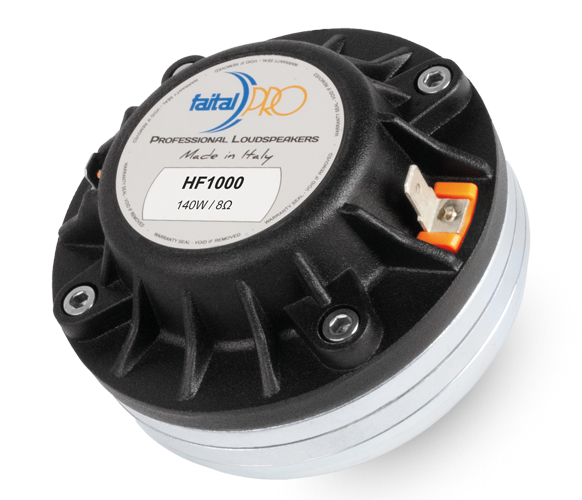

HF1000

1" NEODYMIUM HF DRIVER

140 W Max Power • 52 mm (2") Voice coil diameter

1.3 kHz Minimum Crossover Frequency • 110 dB Sensitivity

8FE400

8" FERRITE MID WOOFER

400 W Max Power • 44 mm (1.73") Voice Coil Diameter

100 ÷ 6000 Hz Frequency Range • 96 dB Sensitivity

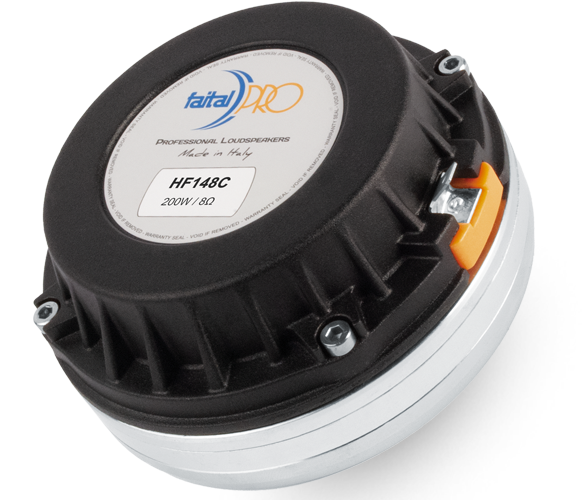

HF148C

1.4" NEODYMIUM HF DRIVER

200 W Max Power • 74 mm (2.91") Voice coil diameter

0.9 kHz Minimum Crossover Frequency • 110 dB Sensitivity

8RS340

8" NEODYMIUM WOOFER

600 W Max Power • 65 mm (2.56") Voice Coil Diameter

50 ÷ 6300 Hz Frequency Range • 91 dB Sensitivity

12FE400

12" FERRITE WOOFER

400 W Max Power • 44 mm (1.73") Voice Coil Diameter

55 ÷ 4000 Hz Frequency Range • 97 dB Sensitivity

10RS430

10" FERRITE WOOFER

800 W Max Power • 65 mm (2.56") Voice Coil Diameter

30 ÷ 2500 Hz Frequency Range • 91 dB Sensitivity

12FE330

12" FERRITE WOOFER

500 W Max Power • 52 mm (2.05") Voice Coil Diameter

30 ÷ 3000 Hz Frequency Range • 94 dB Sensitivity

10FE400

10" FERRITE WOOFER

400 W Max Power • 44 mm (1.73") Voice Coil Diameter

50 ÷ 4500 Hz Frequency Range • 96 dB Sensitivity

6FE400

6" FERRITE MID WOOFER

400 W Max Power • 44 mm (1.73") Voice Coil Diameter

100 ÷ 7000 Hz Frequency Range • 94 dB Sensitivity

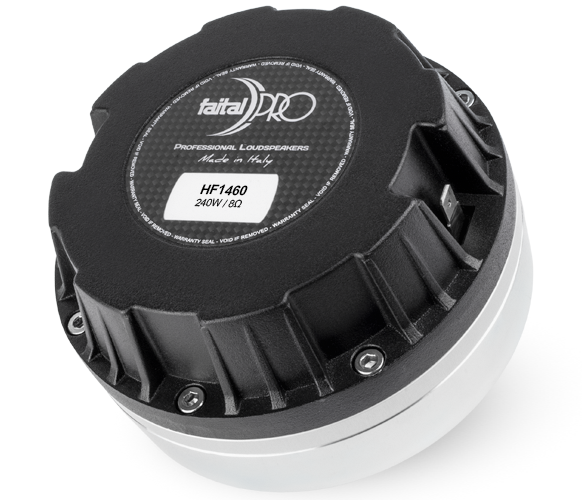

HF1460

1.4" NEODYMIUM HF DRIVER

240 W Maximum Power Handling • 86 mm (3.4") Voice Coil

1 kHz Minimum Crossover Frequency • 109 dB Sensitivity

CARBON FIBER DOME DIAPHRAGM

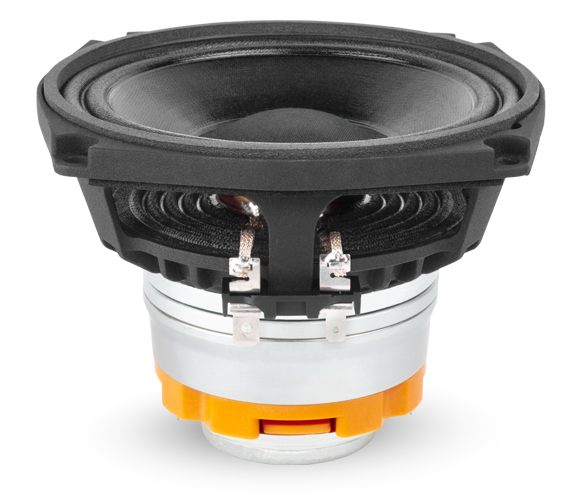

5HX140

5" NEODYMIUM COAXIAL SPEAKER

240 W [LF] / 30 W [HF] Maximum Power Handling

37 mm (1.46 in) [LF] / 25 mm (0.98 in) [HF] Voice Coil Diam.

100 ÷ 18000 Hz Frequency Range • Integrated Aluminum Horn

2FE24

2.5" NEODYMIUM FULL RANGE

40 W Max Power • 19 mm (0.75") Voice Coil Diameter

170 ÷ 20000 Hz Frequency Range • 85 dB Sensitivity

3FE26

3" NEODYMIUM FULL RANGE

40 W Max Power • 19 mm (0.75") Voice Coil Diameter

100 ÷ 20000 Hz Frequency Range • 90 dB Sensitivity

HX240 SERIES

DISCOVER A BRAND NEW FAMILY OF NEODYMIUM COAXIAL LOUDSPEAKER

12HX500

12" NEODYMIUM COAXIAL SPEAKER

Dual Magnet Technology • Double 3" Voice Coil System

Integrated Aluminium Horn • 50 ÷ 20000 Hz Frequency Range

18XL2000

18" NEODYMIUM SUBWOOFER

4000 W Max Power • 66 mm Total Max Excursion • 28 Hz Fs

118 mm (4.65") Voice Coil Diameter • 97 dB Sensitivity

5PR160

5" NEODYMIUM MID WOOFER

240 W Max Power • 37 mm (1.45") Voice Coil Diameter

100 ÷ 6500 Hz Frequency Range • 92 dB Sensitivity
