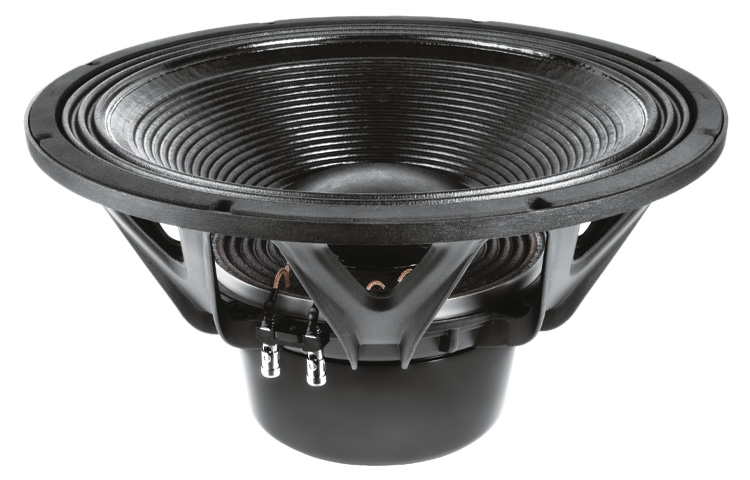

18XL1700 { 18" - 1600 W - 97 dB - 8 Ohm }
Available Impedance: 8 Ohm
DOWNLOAD DATASHEET DOWNLOAD INFO PACK

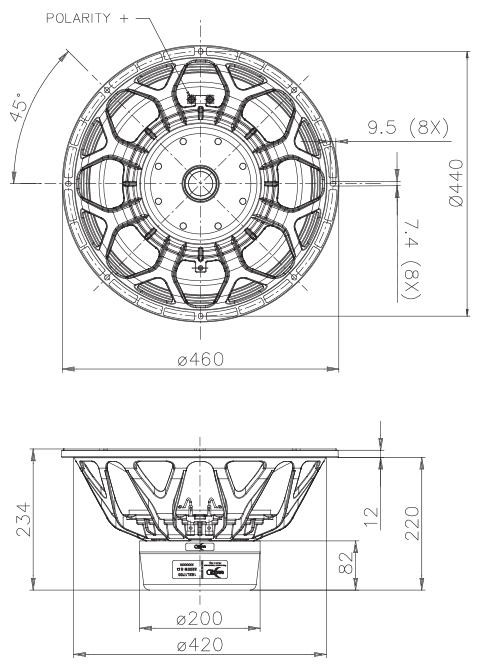

Nominal Specifications
Nominal Diameter 460 mm (18 in)
Overall Diameter 460 mm (18.11 in)
Bolt Circle Diameter 440 mm (17.32 in)
Baffle Cutout Diameter 422 mm (16.61 in)
Depth 234 mm (9.21 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 14.9 kg (32.7 lb)
Shipping Box
(Single Carton Box)		 490 x 485 x 275 mm
(19.2 x 19.0 x 10.8 in)
Shipping Weight 16.4 kg (36.0 lb)


Technical Parameters

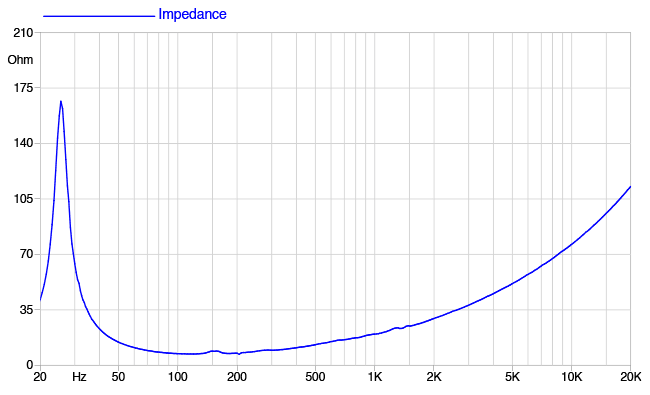

Nominal Impedance 8 Ohm
Minimum Impedance 6.9 Ohm
AES Power Handling (1) 1600 W
Maximum Power Handling (2) 3200 W

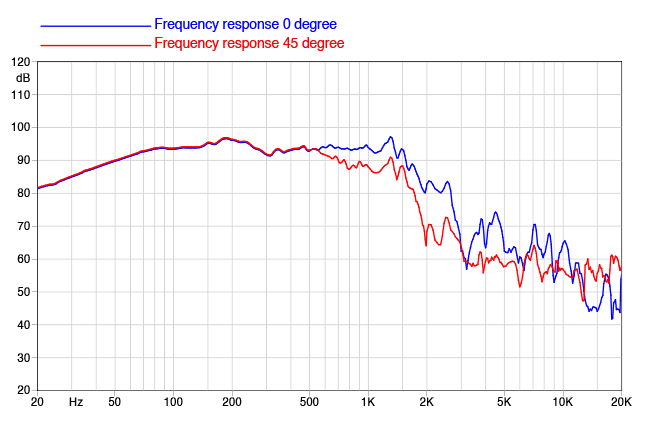

Sensitivity (1W/1m) 97 dB
Frequency Range 30÷1500 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 37 mm (1.46 in)
Magnetic Gap Depth 14 mm (0.55 in)
Flux Density 1.15 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 8.4 dm^3 (0.295 ft^3)
Spider Profile 2x constant height waves
Thiele and small parameters
Fs 28 Hz
Re 5.4 Ohm
Qes 0.29
Qms 10.0
Qts 0.28
Vas 227.0 dm^3 (8.02 ft^3)
Sd 1187 cm^2 (183.99 in^2)
Xmax (4) 16.17 mm
Xdamage (5) 27 mm
Mms 280.0 g
Bl 30.5 N/A
Le 2.36 mH
Mmd 233.8 g
Cms 0.12 mm/N
Rms 4.9 kg/s
Eta Zero 1.7 %
EBP 98 Hz


PART NUMBER (P/N)
Push Terminals - 8 Ohm Version 04604436



Notes:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Treated Polycotton
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
Quick acoustic specs
Nominal Impedance 8 Ohm
Minimum Impedance 6.9 Ohm
AES Power Handling (1) 1600 W
Sensitivity (1W/1m) 97 dB
Frequency Range 30÷1500 Hz
Flux Density 1.15 T
Magnet Neodymium Ring
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 28 Hz
Re 5.4 Ohm
Qes 0.29
Qms 10.0
Qts 0.28
Vas 227.0 dm^3 (8.02 ft^3)
Sd 1187 cm^2 (183.99 in^2)
Xmax (3) 16.17 mm
Xdamage (4) 27 mm
Mms 280.0 g
Bl 30.5 N/A
Le 2.36 mH
Mmd 233.8 g
Cms 0.12 mm/N
Rms 4.9 kg/s
Eta Zero 1.7 %
EBP 98 Hz



Note:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Treated Polycotton
(3) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(4) Maximum excursion before permanent damage
Quick mechanical specs
Nominal Diameter 460 mm (18 in)
Overall Diameter 460 mm (18.11 in)
Bolt Circle Diameter 440 mm (17.32 in)
Baffle Cutout Diameter 422 mm (16.61 in)
Depth 234 mm (9.21 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 14.9 kg (32.7 lb)
Shipping Box
(Single Carton Box)		 490 x 485 x 275 mm
(19.2 x 19.0 x 10.8 in)
Shipping Weight 16.4 kg (36.0 lb)
