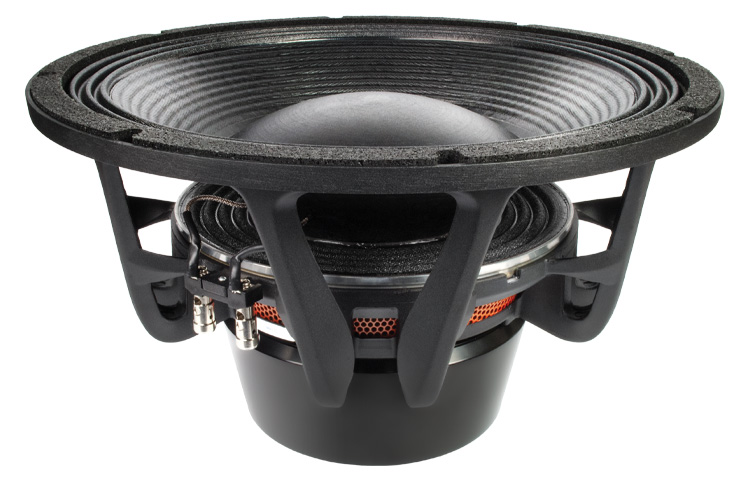

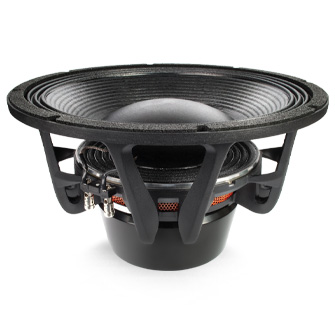

15XL2400 { 15" - 2400 W - 96 dB - 8 Ohm }
Available Impedance: 8 Ohm
DOWNLOAD DATASHEET DOWNLOAD INFO PACK

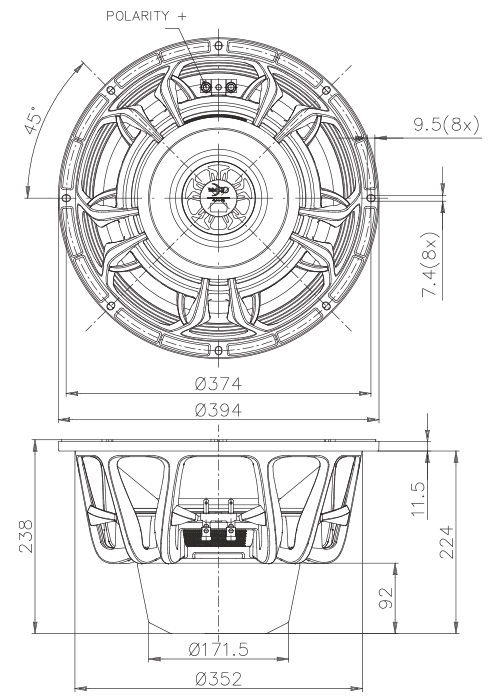

Nominal Specifications
Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 354 mm (13.94 in)
Depth 237.5 mm (9.35 in)
Flange and Gasket Thickness 11.5 mm (0.45 in)
Net Weight 15.7 kg (34.6 lb)
Shipping Box
(Single Carton Box)		 422 x 417 x 284 mm
(16.6 x 16.4 x 11.1 in)
Shipping Weight 17.0 kg (37.5 lb)


Technical Parameters

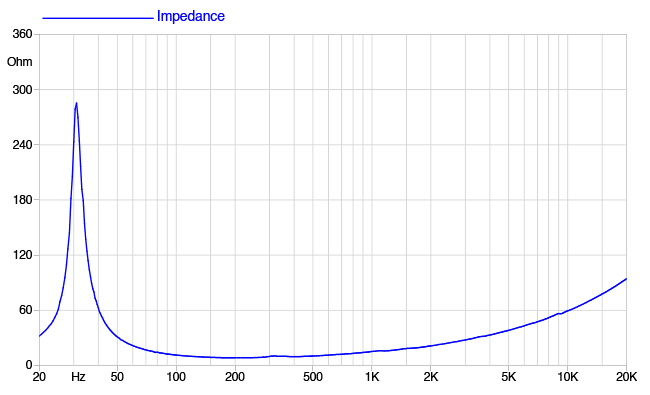

Nominal Impedance 8 Ohm
Minimum Impedance 8.1 Ohm
AES Power Handling (1) 2200 W
Maximum Power Handling (2) 4400 W
Sensitivity (1W/1m) 96 dB

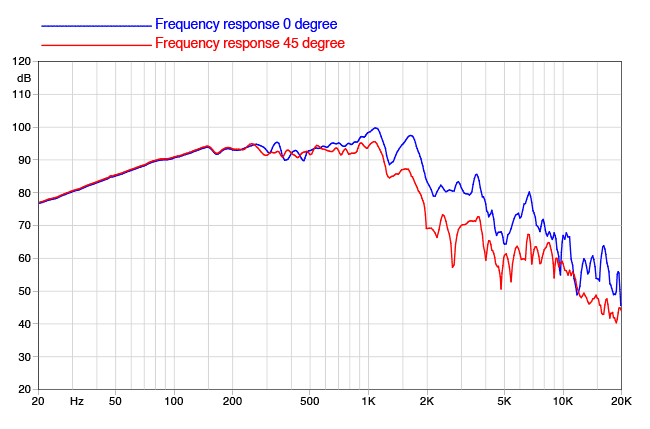

Frequency Range 30÷1500 Hz
Voice Coil Diameter 140 mm (5.5 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 40 mm (1.57 in)
Magnetic Gap Depth 14 mm (0.55 in)
Flux Density 1.35 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 7.3 dm^3 (0.258 ft^3)
Spider Profile 2x constant height waves
Thiele and small parameters
Fs 32 Hz
Re 6.3 Ohm
Qes 0.21
Qms 15.4
Qts 0.21
Vas 113.9 dm^3 (4.02 ft^3)
Sd 848 cm^2 (131.44 in^2)
Xmax (4) 17.67 mm
Xdamage (5) 40 mm
Mms 218.0 g
Bl 36.0 N/A
Le 1.4 mH
Mmd 190.1 g
Cms 0.11 mm/N
Rms 2.8 kg/s
Eta Zero 1.7 %
EBP 150 Hz


PART NUMBER (P/N)
Push Terminals - 8 Ohm Version 03804444



Notes:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Treated Polycotton
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
Quick acoustic specs
Nominal Impedance 8 Ohm
Minimum Impedance 8.1 Ohm
AES Power Handling (1) 2200 W
Sensitivity (1W/1m) 96 dB
Frequency Range 30÷1500 Hz
Flux Density 1.35 T
Magnet Neodymium Ring
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 32 Hz
Re 6.3 Ohm
Qes 0.21
Qms 15.4
Qts 0.21
Vas 113.9 dm^3 (4.02 ft^3)
Sd 848 cm^2 (131.44 in^2)
Xmax (3) 17.67 mm
Xdamage (4) 40 mm
Mms 218.0 g
Bl 36.0 N/A
Le 1.4 mH
Mmd 190.1 g
Cms 0.11 mm/N
Rms 2.8 kg/s
Eta Zero 1.7 %
EBP 150 Hz



Note:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Treated Polycotton
(3) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(4) Maximum excursion before permanent damage
Quick mechanical specs
Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 354 mm (13.94 in)
Depth 237.5 mm (9.35 in)
Flange and Gasket Thickness 11.5 mm (0.45 in)
Net Weight 15.7 kg (34.6 lb)
Shipping Box
(Single Carton Box)		 422 x 417 x 284 mm
(16.6 x 16.4 x 11.1 in)
Shipping Weight 17.0 kg (37.5 lb)
