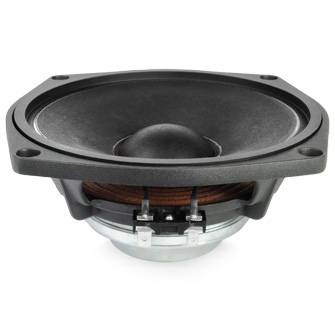

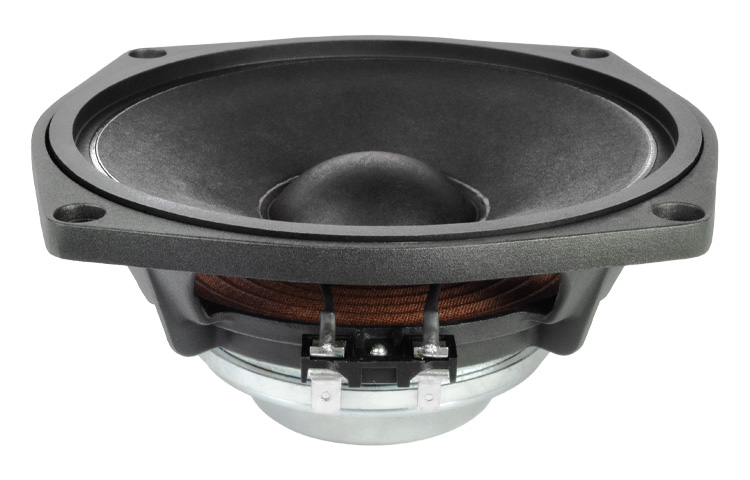

6PR130 { 6" - 200 W - 101 dB - 8 Ohm }
Available Impedance: 8 Ohm
DOWNLOAD DATASHEET DOWNLOAD INFO PACK

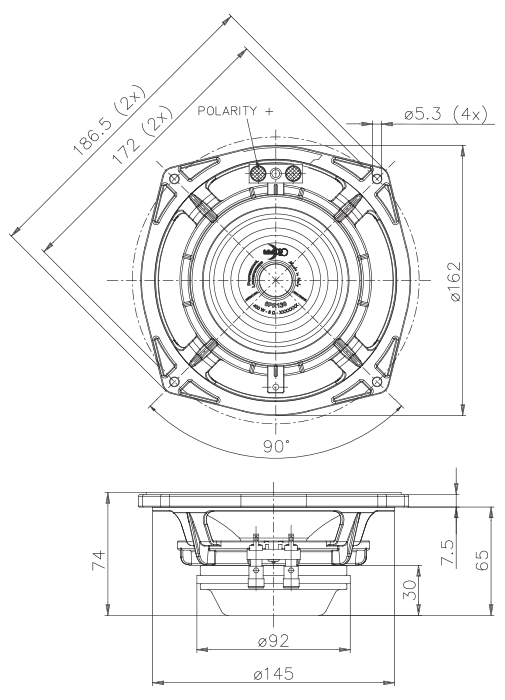

Nominal Specifications
Nominal Diameter 160 mm (6 in)
Overall Diameter 186.5/162 mm (7.34/6.37 in)
Bolt Circle Diameter 172 mm (6.77 in)
Baffle Cutout Diameter 147 mm (5.79 in)
Depth 74 mm (2.91 in)
Flange and Gasket Thickness 9 mm (0.35 in)
Net Weight 0.82 kg (1.8 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in)
Shipping Weight 1.2 kg (2.6 lb)


Technical Parameters

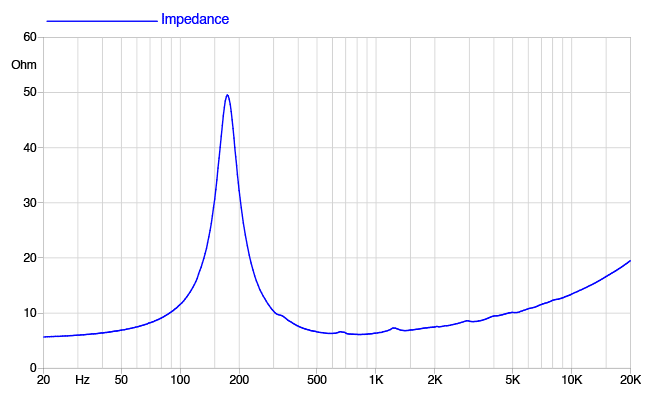

Nominal Impedance 8 Ohm
Minimum Impedance 6.2 Ohm
AES Power Handling (1) 200 W
Maximum Power Handling (2) 400 W

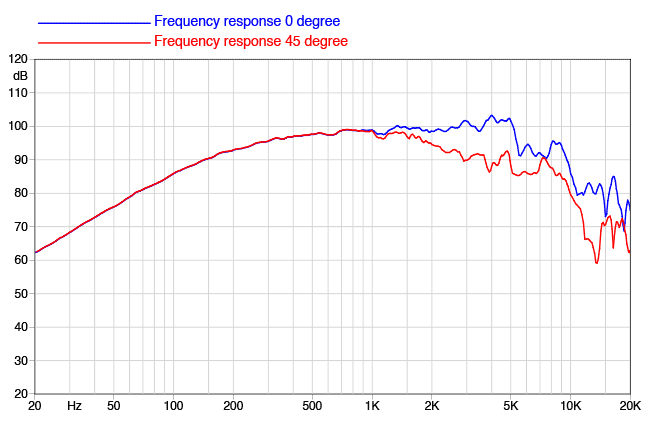

Sensitivity (1W/1m) 101 dB
Frequency Range 200÷5000 Hz
Voice Coil Diameter 44 mm (1.7 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 11.2 mm (0.44 in)
Magnetic Gap Depth 6 mm (0.24 in)
Flux Density 1.7 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Raised planar
NET Air Volume filled by Loudspeaker 0.30 dm^3 (0.011 ft^3)
Spider Profile 1x constant height waves
Thiele and small parameters
Fs 175 Hz
Re 5.2 Ohm
Qes 0.57
Qms 3.1
Qts 0.48
Vas 4.2 dm^3 (0.15 ft^3)
Sd 147.95 cm^2 (22.93 in^2)
Xmax (4) 4.60 mm
Xdamage (5) 5.25 mm
Mms 12.0 g
Bl 11.4 N/A
Le 0.17 mH
Mmd 10.0 g
Cms 0.07 mm/N
Rms 4.3 kg/s
Eta Zero 2.07 %
EBP 307 Hz


PART NUMBER (P/N)
Push Terminals - 8 Ohm Version 01604435



Notes:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) NBR (Rubber)
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
Quick acoustic specs
Nominal Impedance 8 Ohm
Minimum Impedance 6.2 Ohm
AES Power Handling (1) 200 W
Sensitivity (1W/1m) 101 dB
Frequency Range 200÷5000 Hz
Flux Density 1.7 T
Magnet Neodymium Ring
Demodulation Aluminum Ring
Fs 175 Hz
Re 5.2 Ohm
Qes 0.57
Qms 3.1
Qts 0.48
Vas 4.2 dm^3 (0.15 ft^3)
Sd 147.95 cm^2 (22.93 in^2)
Xmax (2) 4.60 mm
Xdamage (3) 5.25 mm
Mms 12.0 g
Bl 11.4 N/A
Le 0.17 mH
Mmd 10.0 g
Cms 0.07 mm/N
Rms 4.3 kg/s
Eta Zero 2.07 %
EBP 307 Hz



Note:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(3) Maximum excursion before permanent damage
Quick mechanical specs
Nominal Diameter 160 mm (6 in)
Overall Diameter 186.5/162 mm (7.34/6.37 in)
Bolt Circle Diameter 172 mm (6.77 in)
Baffle Cutout Diameter 147 mm (5.79 in)
Depth 74 mm (2.91 in)
Flange and Gasket Thickness 9 mm (0.35 in)
Net Weight 0.82 kg (1.8 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in)
Shipping Weight 1.2 kg (2.6 lb)
