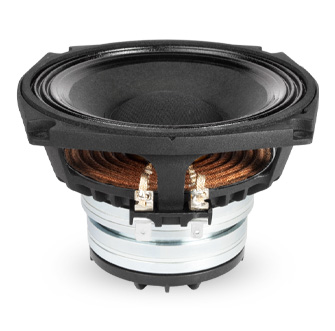

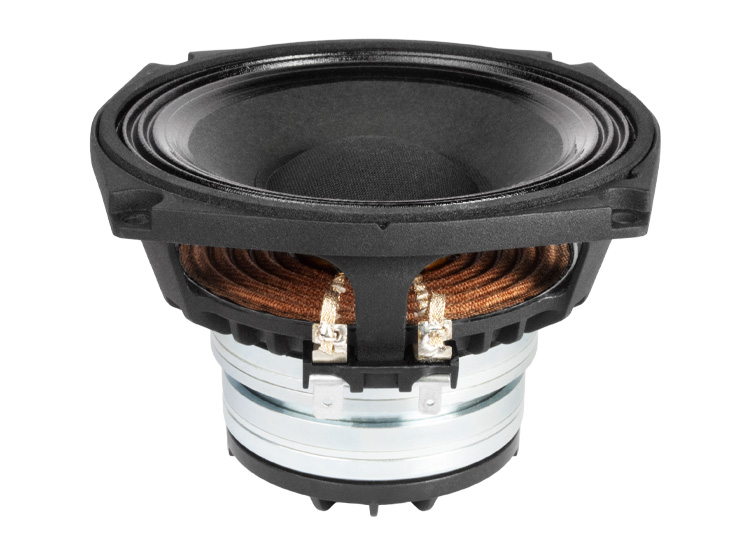

5HX220 { LF 5" - 150 W - 91 dB - 8 Ohm | HF 30 W - 104 dB - 8 Ohm }
Available Impedance: 8 Ohm
DOWNLOAD DATASHEET DOWNLOAD INFO PACK

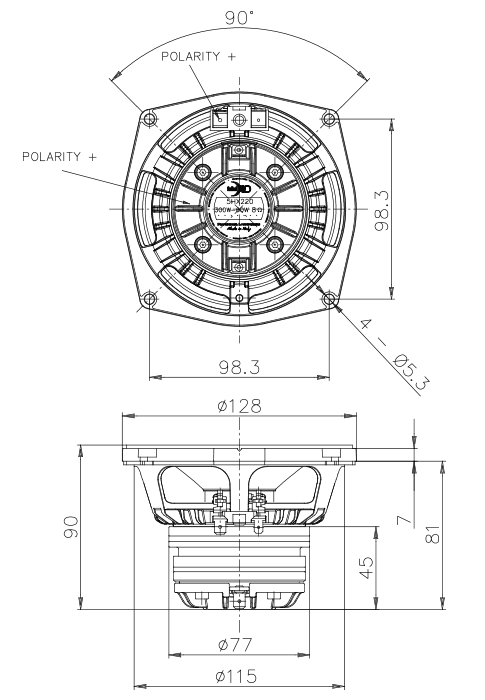

Nominal Specifications
Nom. Diameter 130 mm (5 in)
Overall Diameter 150/128.2 mm (5.91/5.05 in)
Bolt Circle Diameter 139 mm (5.47 in)
Baffle Cutout Diameter 118 mm (4.65 in)
Depth 90 mm (3.54 in)
Flange and Gasket Thickness 9 mm (0.35 in)
Net Weight 1.02 kg (2.2 lb)
Shipping Box
(Single Carton Box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 1.2 kg (2.6 lb)



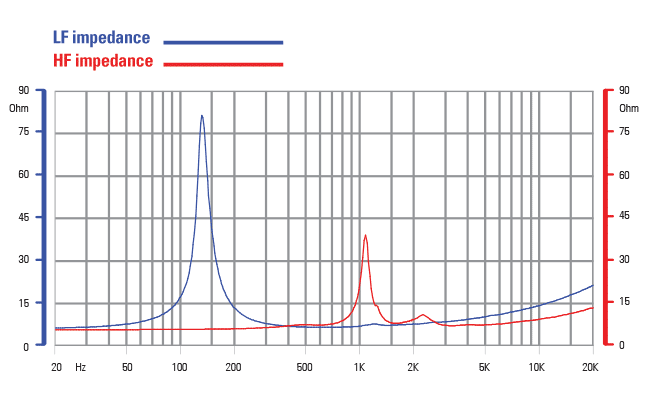

Technical Parameters { LF } { HF }
Nom. Impedance 8 Ohm 8 Ohm
Minimum Impedance 6.4 Ohm 7 Ohm
AES Power Handling (1) 150 W 30 W
Max Power Handling (2) 300 W 60 W
Sensitivity (1W/1m) (3) 91 dB 104 dB
Frequency Range 125÷5000 Hz 1700÷20000 Hz
Voice Coil Diameter 37 mm (1.46 in) 37 mm (1.46 in)
Winding Material Al Al
Former Material Glass Fiber Kapton
Winding Depth 10.8 mm (0.43 in) 2.3 mm (0.09 in)
Magnetic Gap Depth 5 mm (0.20 in) 2.6 mm (0.10 in)
Flux Density 1.1 T 1.6 T
Min. Cross. Freq. (4) - 1.7 kHz

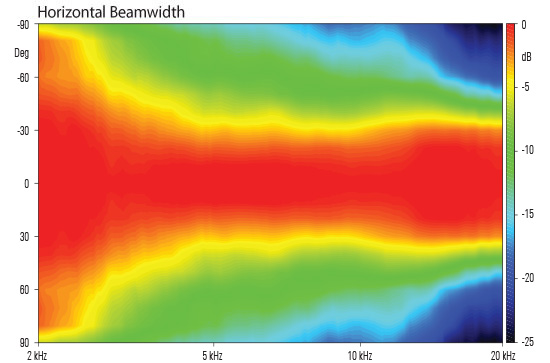

Dispersion Angle - 80°
Diaphragm Material - Ketone Polymer
Diaphragm Shape - Dome
Magnet Neodymium Ring Neodymium Ring
Basket Material Aluminum -
Demodulation Aluminum Ring -
Cone Surround (5) Triple Roll -
NET Air Volume filled by Loudspeaker 0.3 dm^3 (0.011 ft^3) -
Spider Profile 1x constant height waves -
Thiele and small parameters { LF }
Fs 125 Hz
Re [LF] 5.8 Ohm
Re [HF] 5.5 Ohm
Qes 0.6
Qms 8.1
Qts 0.56
Vas 2.5 dm^3 (0.09 ft^3)
Sd 90.6 cm^2 (14.04 in^2)
Xmax (6) 4.57 mm
Xdamage (7) 8 mm
Mms 7.3 g
Bl 7.7 N/A
Le 0.2 mH
Mmd 6.3 g
Cms 0.22 mm/N
Rms 0.7 kg/s
Eta Zero 0.85 %
EBP 208 Hz


PART NUMBER (P/N)
Faston Terminals - 8 Ohm Version TBD



Notes:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) HF Sensitivity averaged within the frequency range
(4) 12 dB/oct or higher slope high-pass filter
(5) Treated Polycotton
(6) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(7) Maximum excursion before permanent damage

Quick acoustic specs { LF } { HF }
Nom. Impedance 8 Ohm 8 Ohm
Minimum Impedance 6.4 Ohm 7 Ohm
AES Power Handling (1) 150 W 30 W
Sensitivity (1W/1m) (2) 91 dB 104 dB
Frequency Range 125÷5000 Hz 1700÷20000 Hz
Flux Density 1.1 T 1.6 T
Min. Cross. Freq. (3) - 1.7 kHz
Dispersion Angle - 80°
Diaphragm Material - Ketone Polymer
Diaphragm Shape - Dome
Magnet Neodymium Ring Neodymium Ring
Demodulation Aluminum Ring -
Cone Surround (4) Triple Roll -



Quick acoustic specs { LF }
Fs 125 Hz
Re [LF] 5.8 Ohm
Re [HF] 5.5 Ohm
Qes 0.6
Qms 8.1
Qts 0.56
Vas 2.5 dm^3 (0.09 ft^3)
Sd 90.6 cm^2 (14.04 in^2)
Xmax (5) 4.57 mm
Xdamage (6) 8 mm
Mms 7.3 g
Bl 7.7 N/A
Le 0.2 mH
Mmd 6.3 g
Cms 0.22 mm/N
Rms 0.7 kg/s
Eta Zero 0.85 %
EBP 208 Hz



Note:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) HF Sensitivity averaged within the frequency range
(3) 12 dB/oct or higher slope high-pass filter
(4) Treated Polycotton
(5) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(6) Maximum excursion before permanent damage

Quick mechanical specs
Nom. Diameter 130 mm (5 in)
Overall Diameter 150/128.2 mm (5.91/5.05 in)
Bolt Circle Diameter 139 mm (5.47 in)
Baffle Cutout Diameter 118 mm (4.65 in)
Depth 90 mm (3.54 in)
Flange and Gasket Thickness 9 mm (0.35 in)
Net Weight 1.02 kg (2.2 lb)
Shipping Box
(Single Carton Box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 1.2 kg (2.6 lb)
