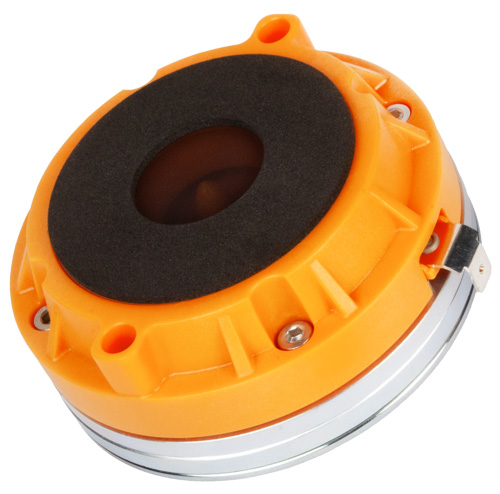

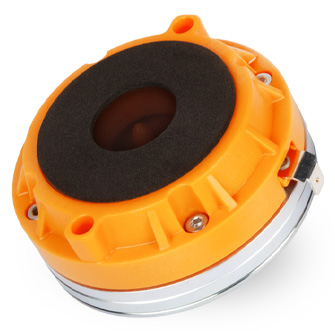

Technical Parameters

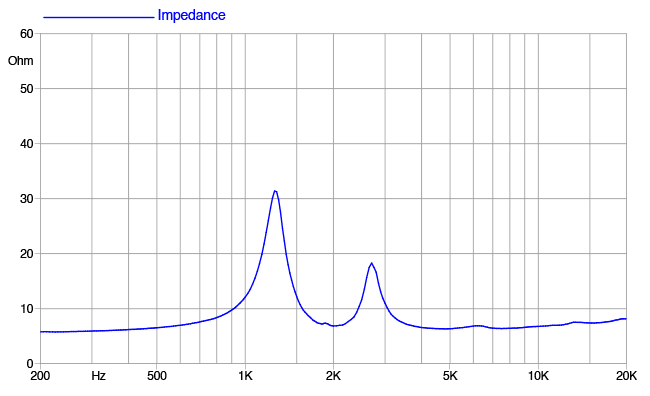

| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.5 Ohm |
| AES Power Handling (1) |
60 W |
| Maximum Power Handling (2) |
120 W |
| Minimum Crossover Frequency (3) |
1 kHz |

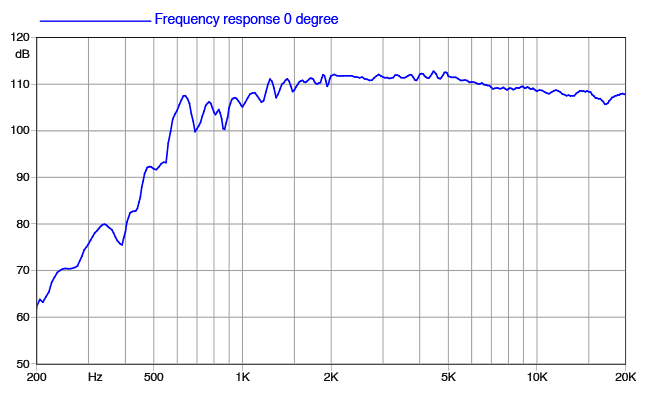

| Sensitivity (1W/1m) (4) |
110 dB |
| Frequency Range |
1÷20 kHz |
| Voice Coil Diameter |
44 mm (1.73 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Ketone Polymer |
| Diaphragm Shape |
Annular |
| Winding Depth |
1.7 mm (0.07 in) |
| Magnetic Gap Depth |
3.5 mm (0.14 in) |
| Flux Density |
2.1 T |
| Magnet |
Neodymium Ring |
| Re |
5.4 Ohm |
| Phase Plug Design |
Annular |
| Exit Angle (5) |
Combined Exit |
| NET Air Volume filled by HF Driver |
0.2 dm^3 (0.007 ft^3) |
|
Nominal Specifications

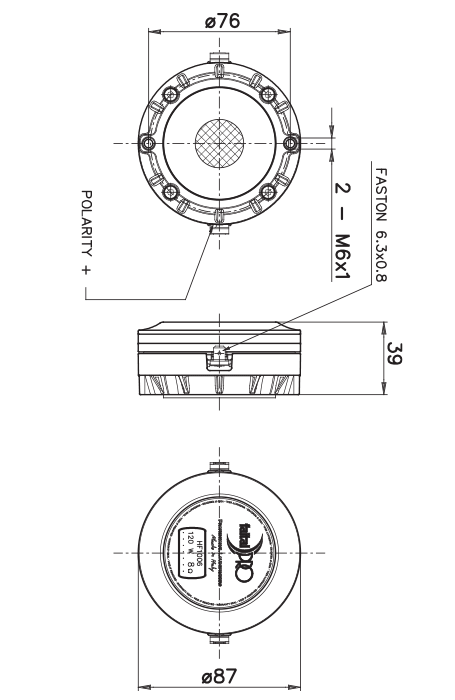

| Throat Diameter |
25.4 mm (1 in) |
| Overall Diameter |
87 mm (3.43 in) |
| 180° Mounting Holes Diameter (2xM5) |
76 mm (2.99 in) |
| Depth |
39 mm (1.54 in) |
| Net Weight |
775 g (1.7 lb) |
Shipping Box
(Single carton box) |
147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in) |
| Shipping Weight |
890 g (2.0 lb) |
Part Number (P/N)
| Faston Terminals - 8 Ohm Version |
00444445 |
Notes:
| Driver mounted on a 1" 50° x 40° Horn |
| (1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
| (2) Maximum power is defined as 3dB greater than nominal power. |
| (3) 12 dB/oct or higher slope high-pass filter |
| (4) Averaged within the frequency range |
| (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn. |
|
