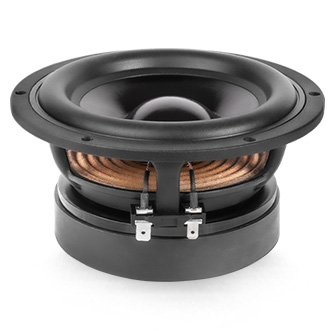

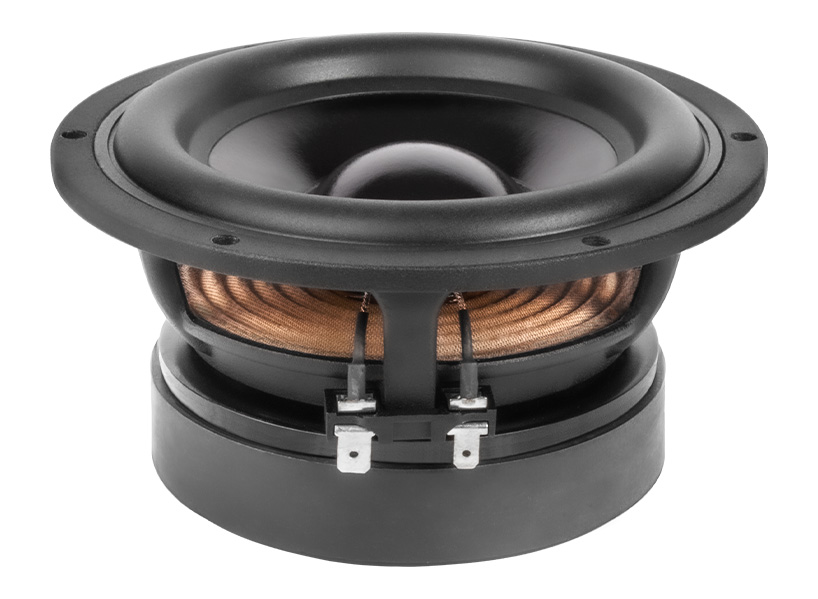

5RS150 { 5" - 120 W - 87 dB - 8 Ohm }
Available Impedance: 8 Ohm
DOWNLOAD DATASHEET DOWNLOAD INFO PACK

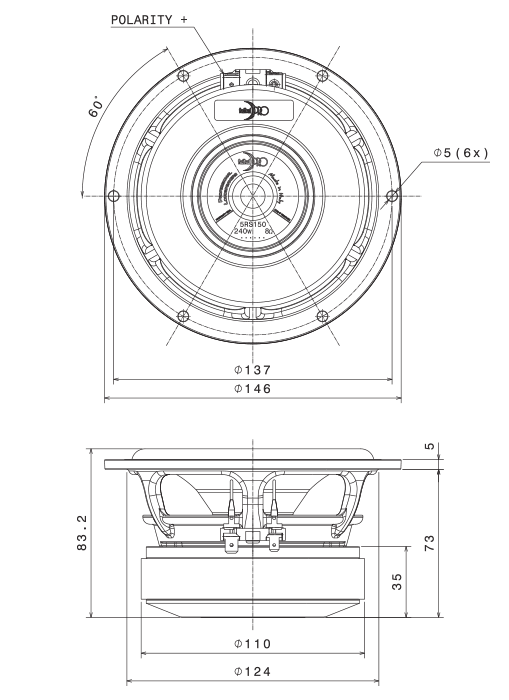

Nominal Specifications
Nominal Diameter 130 mm (5 in)
Overall Diameter 146 mm (5.75 in)
Bolt Circle Diameter 137 mm (5.39 in)
Baffle Cutout Diameter 124 mm (4.88 in)
Depth 83 mm (3.27 in)
Flange and Gasket Thickness 5 mm (0.20 in)
Net Weight 1.92 kg (4.2 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 113 mm
(7.48 x 7.28 x 4.44 in)
Shipping Weight 2.1 kg (4.6 lb)


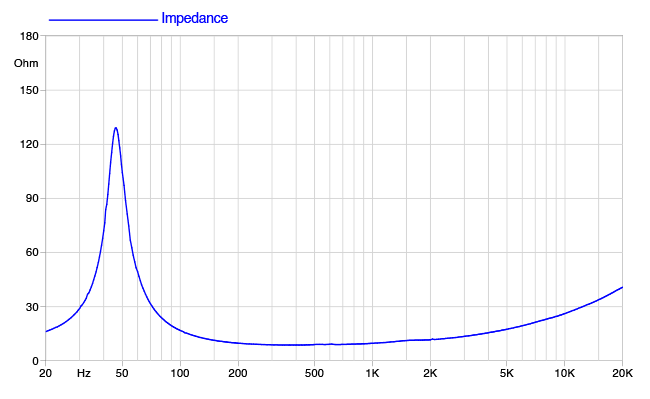

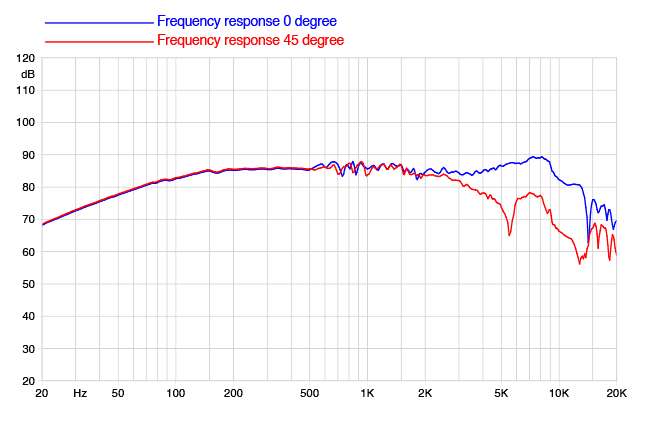

Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 9 Ohm
AES Power Handling (1) 120 W
Maximum Power Handling (2) 240 W
Sensitivity (1W/1m) 87 dB
Frequency Range 45÷9000 Hz
Voice Coil Diameter 37 mm (1.46 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 18 mm (0.71 in)
Magnetic Gap Depth 6 mm (0.24 in)
Flux Density 1.35 T
Magnet Ferrite Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Half Roll
NET Air Volume filled by Loudspeaker 0.5 dm^3 (0.016 ft^3)
Spider Profile 1x constant height waves
Thiele and small parameters
Fs 46 Hz
Re 7.9 Ohm
Qes 0.32
Qms 5.0
Qts 0.30
Vas 9.2 dm^3 (0.33 ft^3)
Sd 88 cm^2 (13.64 in^2)
Xmax (4) 8.00 mm
Xdamage (5) 13 mm
Mms 14.0 g
Bl 10.0 N/A
Le 0.45 mH
Mmd 13.1 g
Cms 0.86 mm/N
Rms 0.86 kg/s
Eta Zero 0.3 %
EBP 144 Hz


PART NUMBER (P/N)
Faston Terminals - 8 Ohm Version 01304443



Notes:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Rubber
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
Quick acoustic specs
Nominal Impedance 8 Ohm
Minimum Impedance 9 Ohm
AES Power Handling (1) 120 W
Sensitivity (1W/1m) 87 dB
Frequency Range 45÷9000 Hz
Flux Density 1.35 T
Magnet Ferrite Ring
Demodulation Aluminum Ring
Fs 46 Hz
Re 7.9 Ohm
Qes 0.32
Qms 5.0
Qts 0.30
Vas 9.2 dm^3 (0.33 ft^3)
Sd 88 cm^2 (13.64 in^2)
Xmax (2) 8.00 mm
Xdamage (3) 13 mm
Mms 14.0 g
Bl 10.0 N/A
Le 0.45 mH
Mmd 13.1 g
Cms 0.86 mm/N
Rms 0.86 kg/s
Eta Zero 0.3 %
EBP 144 Hz



Note:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(3) Maximum excursion before permanent damage
Quick mechanical specs
Nominal Diameter 130 mm (5 in)
Overall Diameter 146 mm (5.75 in)
Bolt Circle Diameter 137 mm (5.39 in)
Baffle Cutout Diameter 124 mm (4.88 in)
Depth 83 mm (3.27 in)
Flange and Gasket Thickness 5 mm (0.20 in)
Net Weight 1.92 kg (4.2 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 113 mm
(7.48 x 7.28 x 4.44 in)
Shipping Weight 2.1 kg (4.6 lb)
