Technical Parameters

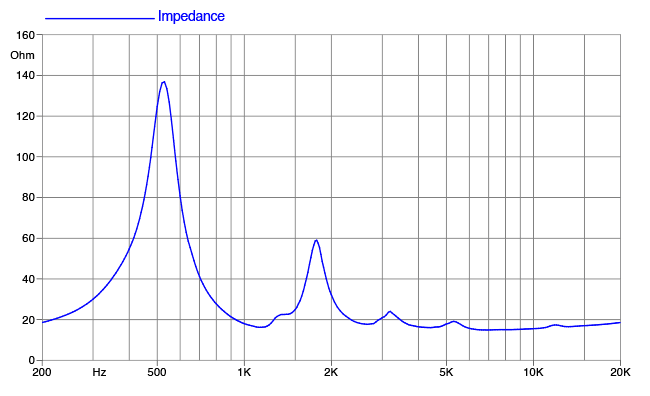

| Nominal Impedance |
16 Ohm |
| Minimum Impedance |
14 Ohm |
| AES Power Handling (1) |
120 W |
| Maximum Power Handling (2) |
240 W |
| Minimum Crossover Frequency (3) |
0.7 kHz |
| Sensitivity (1W/1m) (4) |
109 dB |

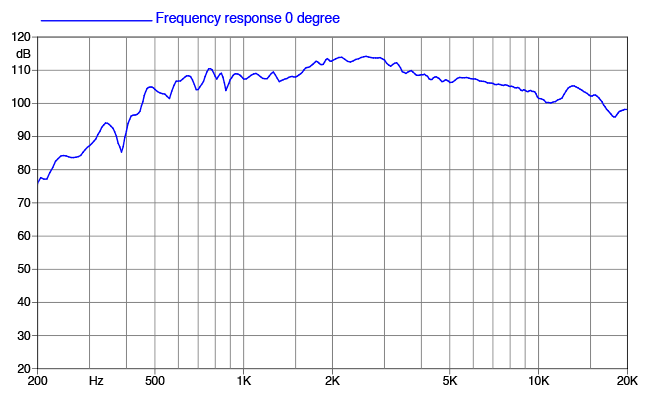

| Frequency Range |
0.5÷20 kHz |
| Voice Coil Diameter |
86 mm (3.4 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Ketone Polymer |
| Diaphragm Shape |
Annular |
| Winding Depth |
3.4 mm (0.13 in) |
| Magnetic Gap Depth |
4 mm (0.16 in) |
| Flux Density |
2.2 T |
| Magnet |
Neodymium Ring |
| Re |
11.7 Ohm |
| Phase Plug Design |
Radial |
| Exit Angle (5) |
Combined Exit |
| NET Air Volume filled by HF Driver |
0.55 dm^3 (0.019 ft^3) |
|
Nominal Specifications
| Throat Diameter |
35.8 mm (1.4 in) |
| Overall Diameter |
124 mm (4.9 in) |
| 90° Mounting Holes Diameter (4xM6) |
102 mm (4.02 in) |
| Depth |
75 mm (3 in) |
| Net Weight |
2.1 kg (4.5 lb) |
Shipping Box
(Single carton box) |
185 x 170 x 102 mm
(7.3 x 6.7 x 4.0 in) |
| Shipping Weight |
2.4 kg (5.3 lb) |
Part Number (P/N)
| Faston Terminals - 8 Ohm Version |
00864439 |
Notes:
| (1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
| (2) Maximum power is defined as 3dB greater than nominal power. |
| (3) 12 dB/oct or higher slope high-pass filter |
| (4) Averaged within the frequency range |
| (5) The driver's exit coincides with the end of the phase plug, there is no adaptation throat. |
|
