CORE FEATURES

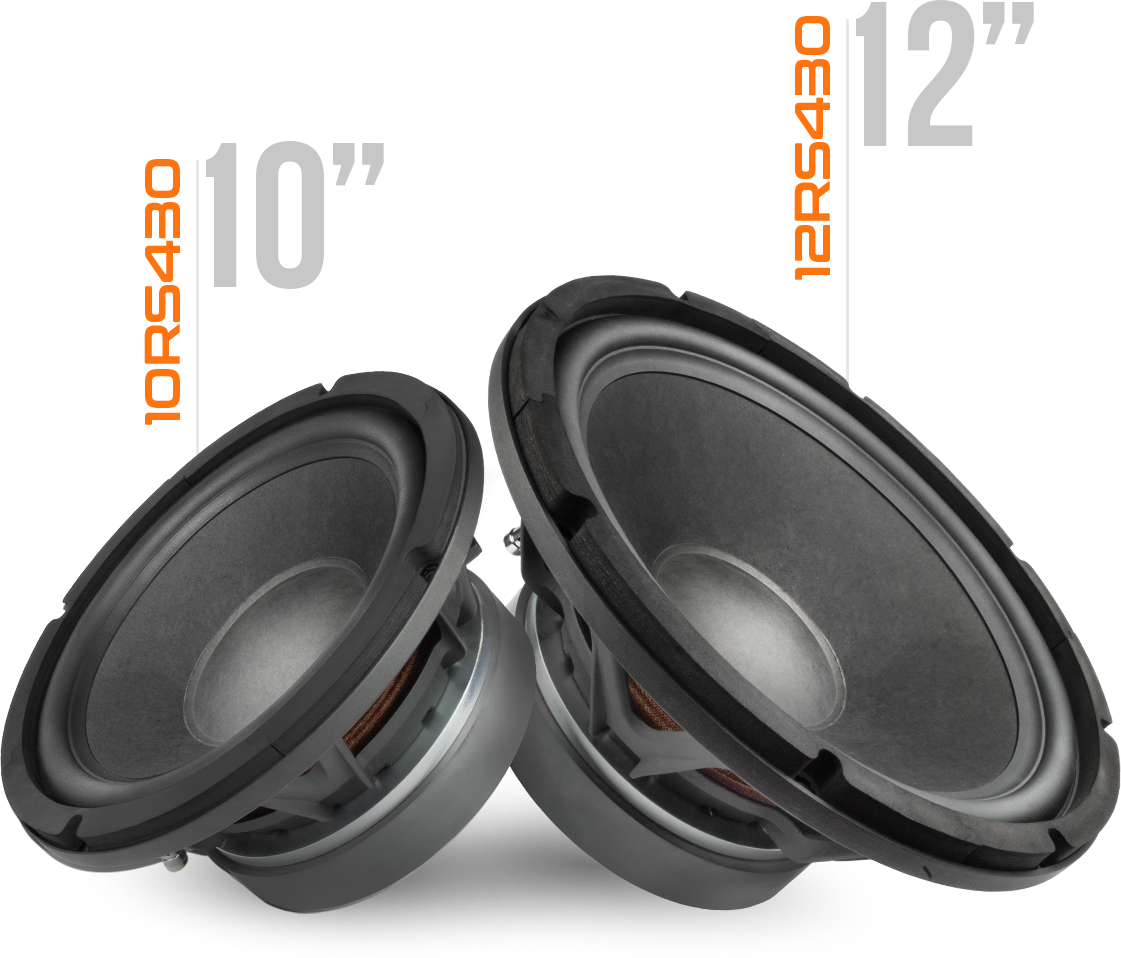

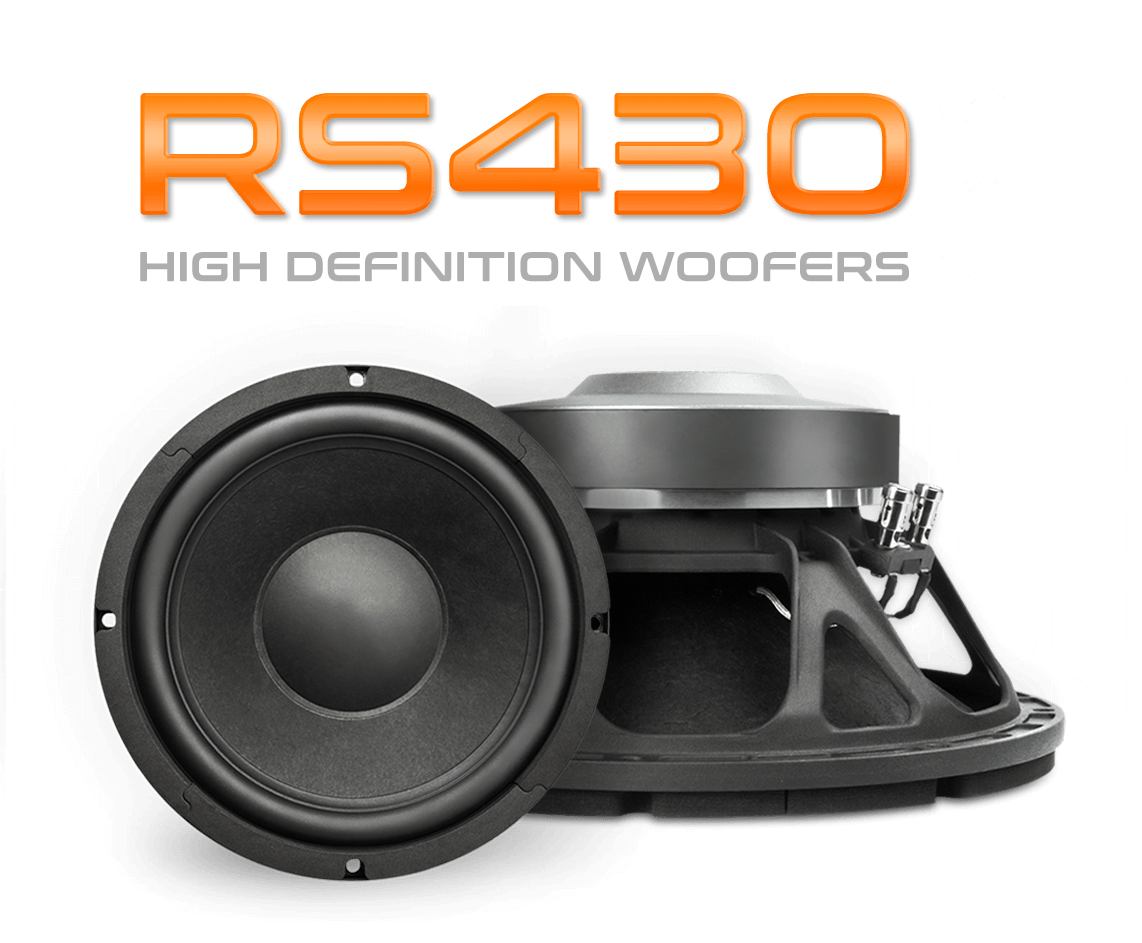

FaitalPRO RS430 SERIES - Available Models

TWO FORMATS, ONE VISION

MAKE YOUR CHOICE

The 10” and 12” models give designers the freedom to choose the format that best suits their acoustic goals and design requirements. Both versions share the same key features and performance consistency, ensuring precise, balanced sound reproduction in any configuration.

LINEARITY AND LOW DISTORTION

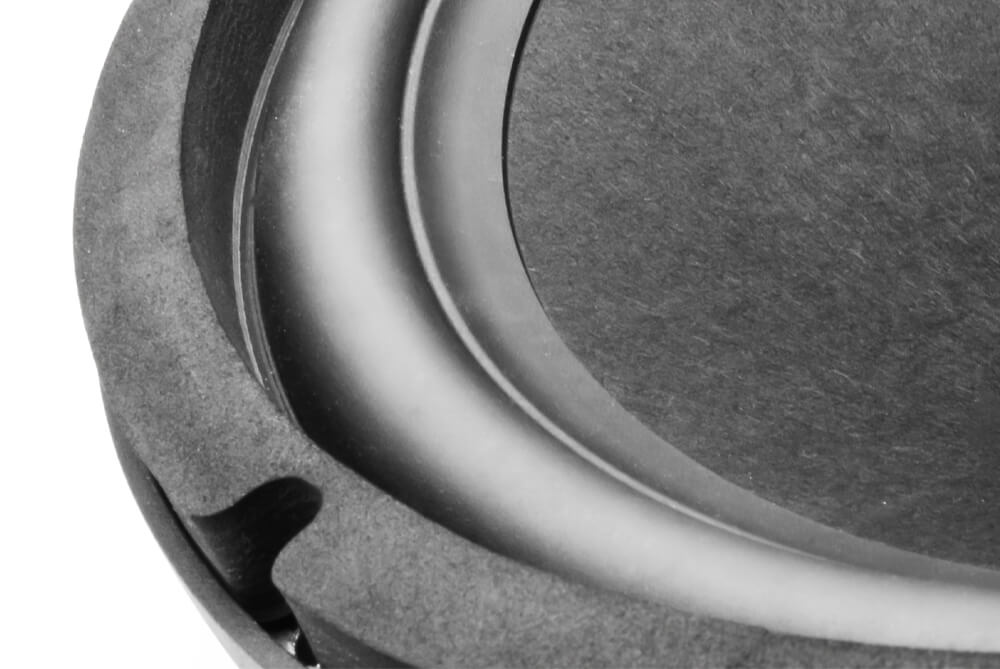

RUBBER SURROUND

The EPDM surround material minimizes mechanical losses and its shape helps maintain uniform cone movement. Its optimized mechanical properties ensure reduced distortion and smooth behavior even at high excursions, providing consistent and reliable performance over time.

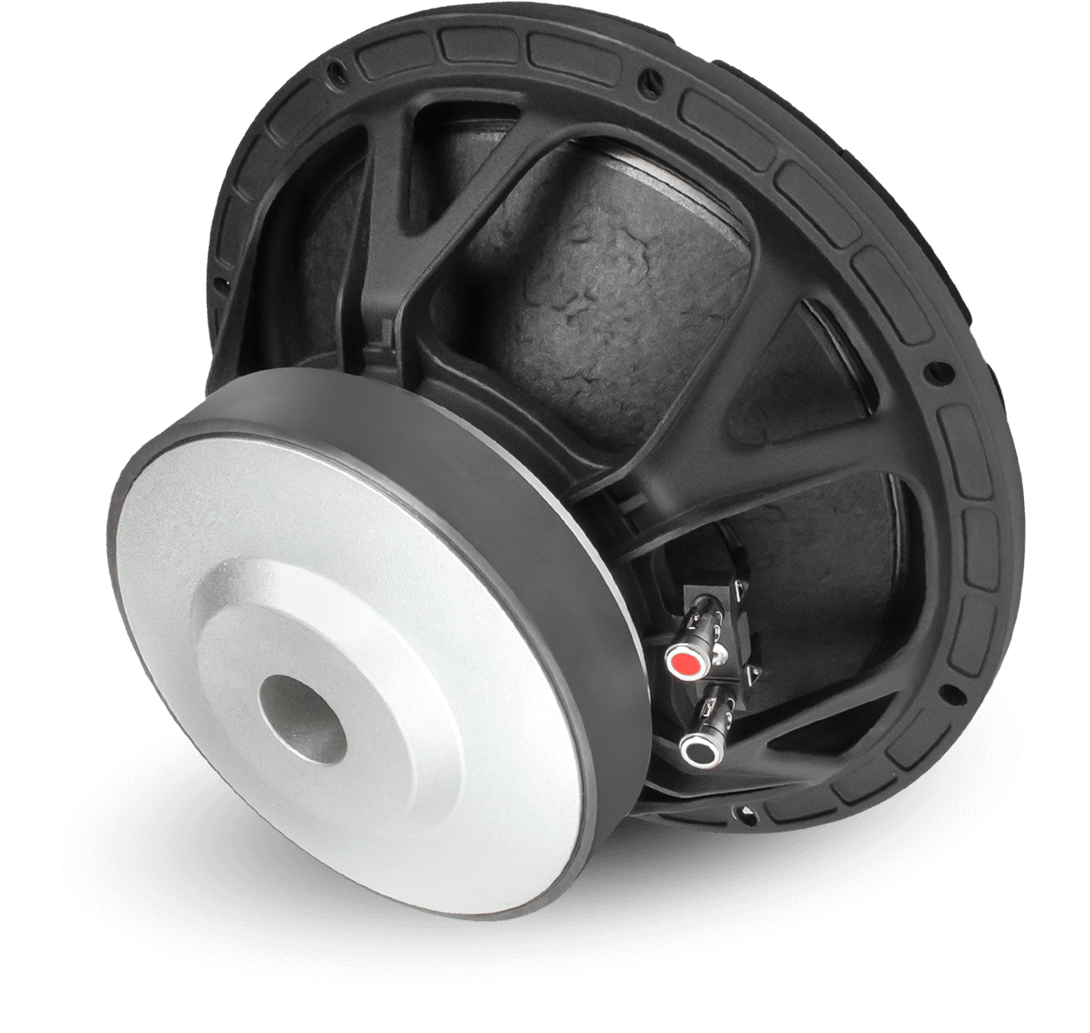

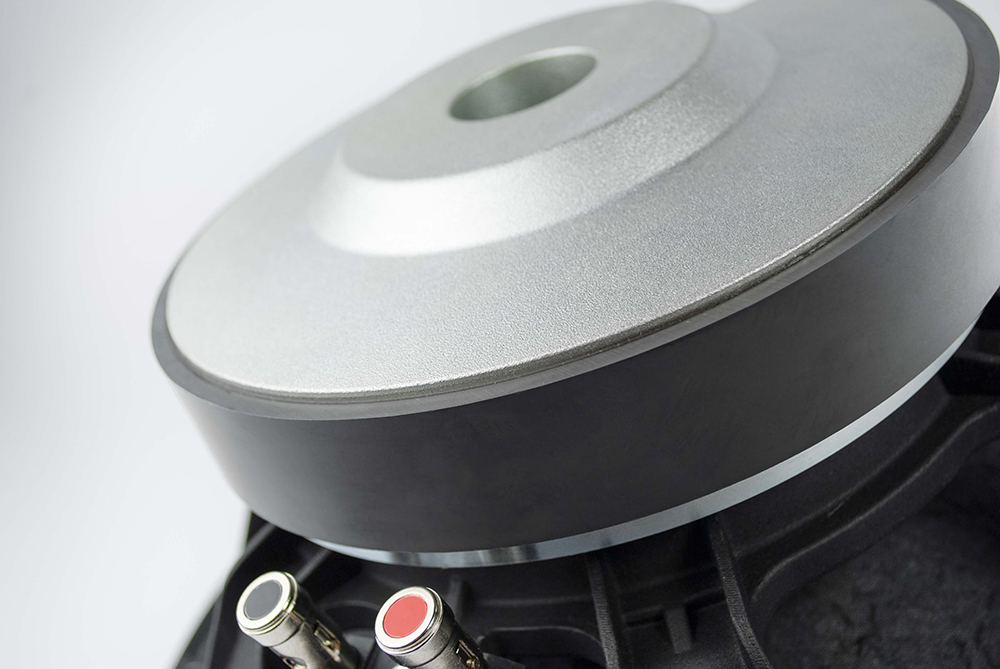

OPTIMIZED POWERFUL

MAGNET ASSEMBLY

The 1.5 Tesla motor, based on a powerful ferrite magnet, provides the energy required for extremely precise control of the 65 mm (2.56 in) voice coil. This configuration ensures excellent transient response and high thermal resistance. This results in deep, clear, and controlled bass, with stable performance even under prolonged workloads and continuous stress, providing reliable and consistent results.

A CONE DESIGNED FOR

SOUND ACCURACY

The aramid fiber cone combines lightness and rigidity, enabling precise and defined low-frequency reproduction with sculpted bass and enhanced control. Every detail of the deep frequencies is rendered clearly, delivering a powerful and stunning listening experience.

CONSISTENT AND

SCULPTED BASS

The RS430 series delivers high-level performance, offering deep low-frequency reproduction that allows every fine detail to be heard. Designed for clarity and balance, these woofers maintain exceptional control and definition even at high excursion, providing a listening experience where every shade of the low end is perfectly articulated.

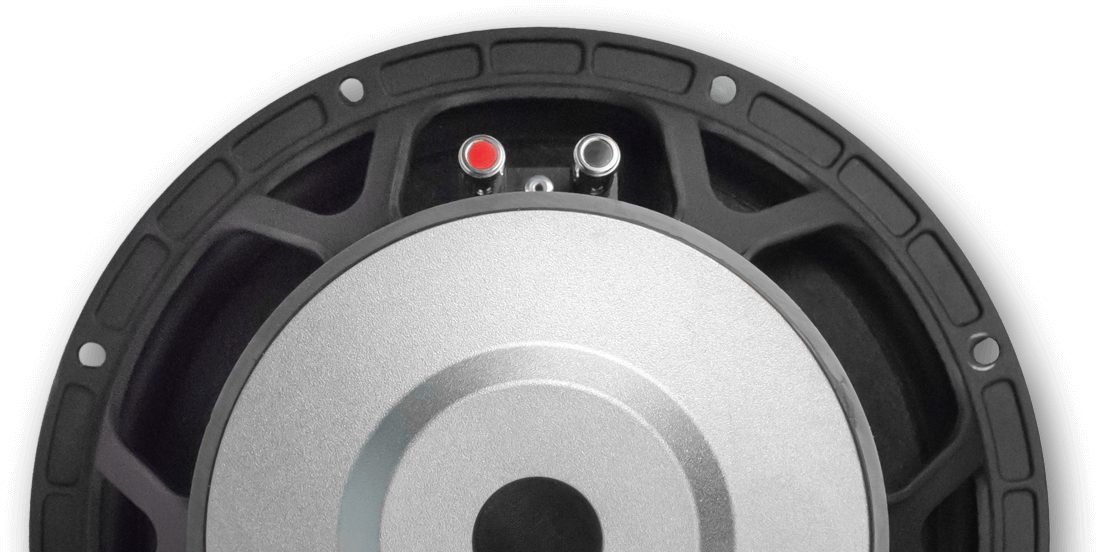

FaitalPRO RS430 SERIES - High Performance Woofers

A HIGHLY DEFINED

LISTENING EXPERIENCE

Designed to deliver faithful reproduction of every sound detail, the RS430 woofers ensure crisp and coherent audio. Their ability to maintain definition and accuracy across the entire operating range makes listening more engaging and allows every musical or cinematic detail to be fully appreciated.

Technical Overview

With the RS430 series, designers gain access to two versatile woofers built for precision and reliability. Key features include a powerful ferrite motor, a stiff cone, and a carefully engineered rubber surround, all integrated into a solid aluminum die-cast basket for stability and consistent sound.

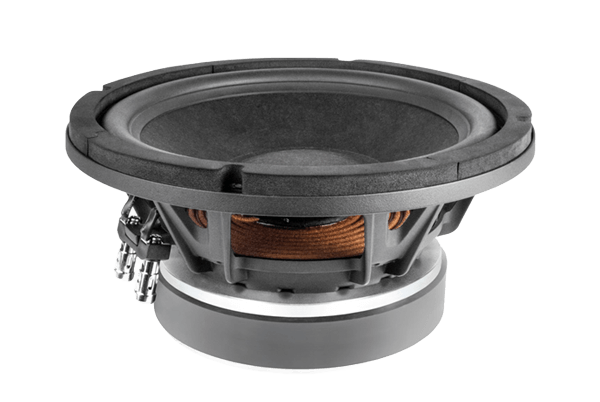

10RS430 10" HIGH DEFINITION WOOFER

NOMINAL DIAMETER 250 mm (10 in)

NET WEIGHT 6.8 kg (15.0 lb)

AES POWER 400 W

SENSITIVITY (1W/1m) 91 dB

VOICE COIL DIAMETER 65 mm (2.56 in)

FREQUENCY RANGE 30÷2500 Hz

TECHNICAL DATASHEET DOWNLOAD INFO PACK ASK FOR A QUOTATION

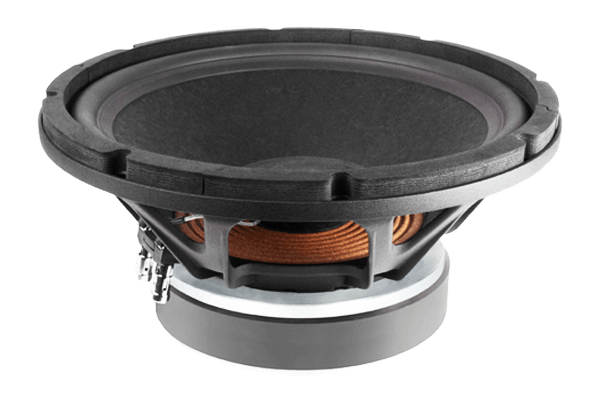

12RS430 12" HIGH DEFINITION WOOFER

NOMINAL DIAMETER 300 mm (12 in)

NET WEIGHT 7.0 kg (15.4 lb)

AES POWER 400 W

SENSITIVITY (1W/1m) 93 dB

VOICE COIL DIAMETER 65 mm (2.56 in)

FREQUENCY RANGE 30÷2500 Hz

TECHNICAL DATASHEET DOWNLOAD INFO PACK ASK FOR A QUOTATION

Suggested Applications

The RS430 woofers are designed to adapt to a wide range of applications, including home cinema, hi-fi systems, studio monitors, bass-reflex cabinets, and subwoofers in band-pass configurations. This versatility allows them to be used confidently in various configurations, consistently delivering balanced and reliable sound.
